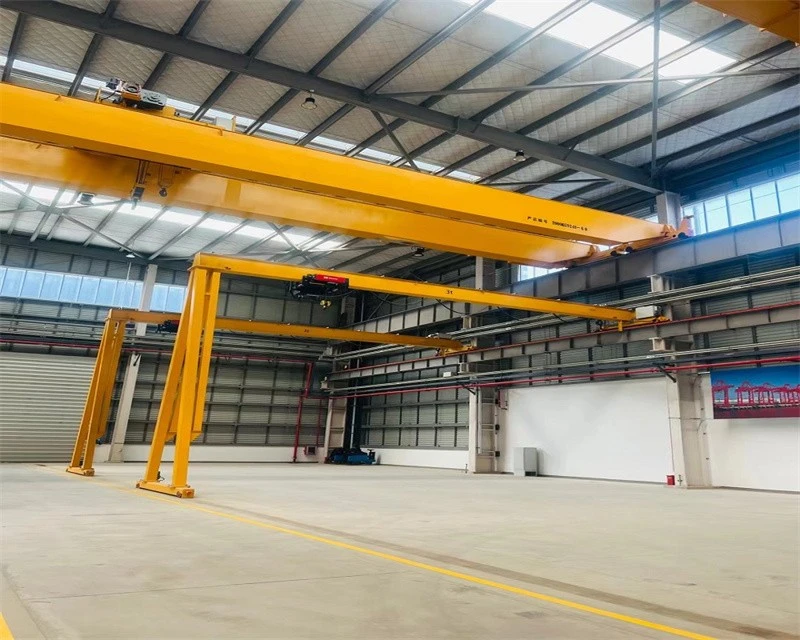

European single girder gantry crane is designed and manufactured according to European standards, with high reliability, light weight and low cost. Combined with the advanced technology of European cranes, the deadweight can be reduced by 20%~30%, the maximum wheel pressure can be reduced by 15%~20%, the structure is light, and the construction cost is reduced. It is widely used in various workshops and warehouses with low clearance but large lifting height, such as parts manufacturing workshops, automobile manufacturing, mechanical processing, warehouses, transfer equipment, heavy material transfer, etc.
■ European single girder gantry crane adopts standardized and modular design, with a complete product series, which can be quickly designed according to customer needs. Its lifting capacity covers 1t-20t, the working level is A5, and it adopts full frequency conversion control.
■ The crane is a low-headroom type, and the hook can be lifted higher.
■ Box beams are used, submerged arc automatic welding, and non-destructive detection arcs meet and exceed national standards.
■ High-quality carbon steel Q235B or Q355B or Q355E is used.
■ The operating mechanism adopts a three-in-one drive system of motor, reducer, and brake to realize three-in-one drive and improve the safety and reliability of the equipment.
■ The motor adopts a three-phase AC variable frequency motor.
■ The brake uses electromagnetic brakes, and uses asbestos-free brake pads and brake discs.
■ The wheel is made of 40Cr or 42CrMo alloy steel, and is tempered as a whole, with high hardness, wear resistance and long life.
■ The bearing uses self-aligning bearings.
■ The protection level is high, up to IP55.
■ Equipped with circuit self-check protection device
■ Equipped with anti-collision, sound and light alarm devices
